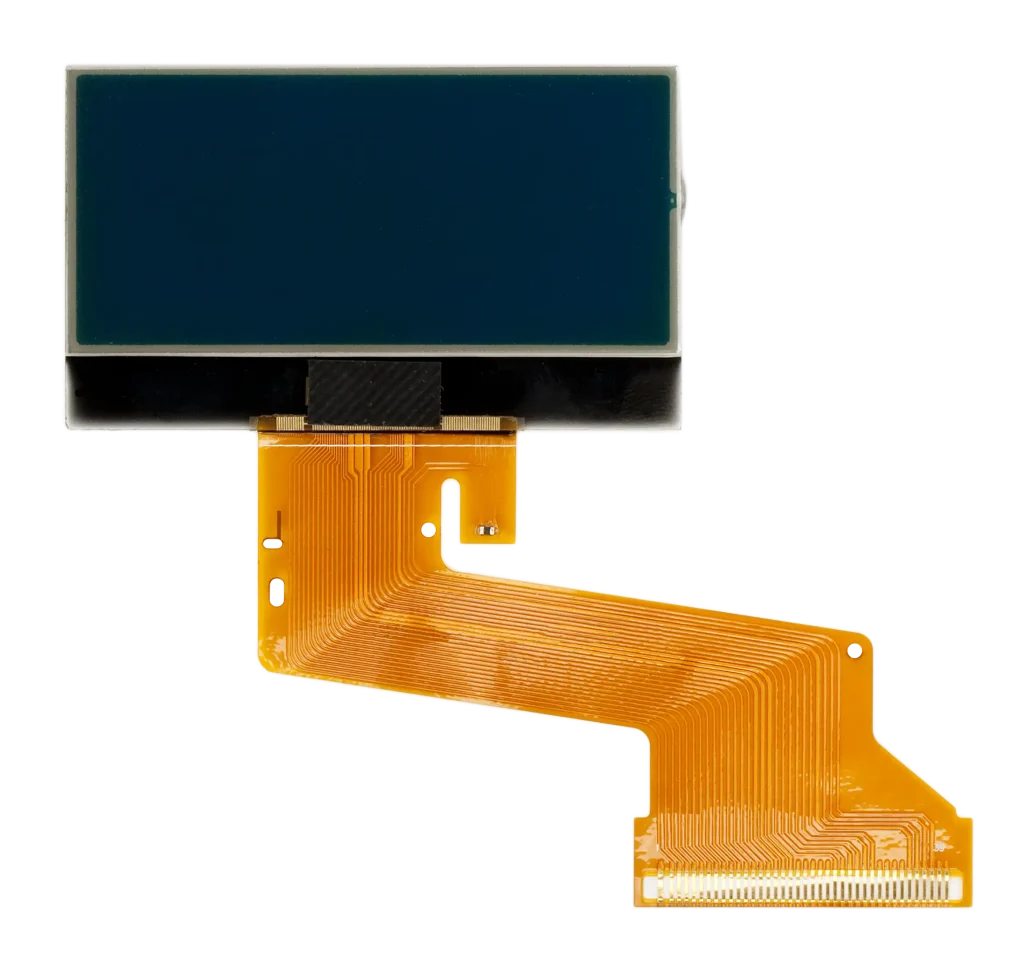

SEPDISP17B
Modification instructions
NOTES: A good level of skill and soldering experience are required to replace the display.
THE FOLLOWING MODIFICATION IS NECESSARY FOR THE CORRECT FUNCTIONING OF SEPDISP17B DISPLAY

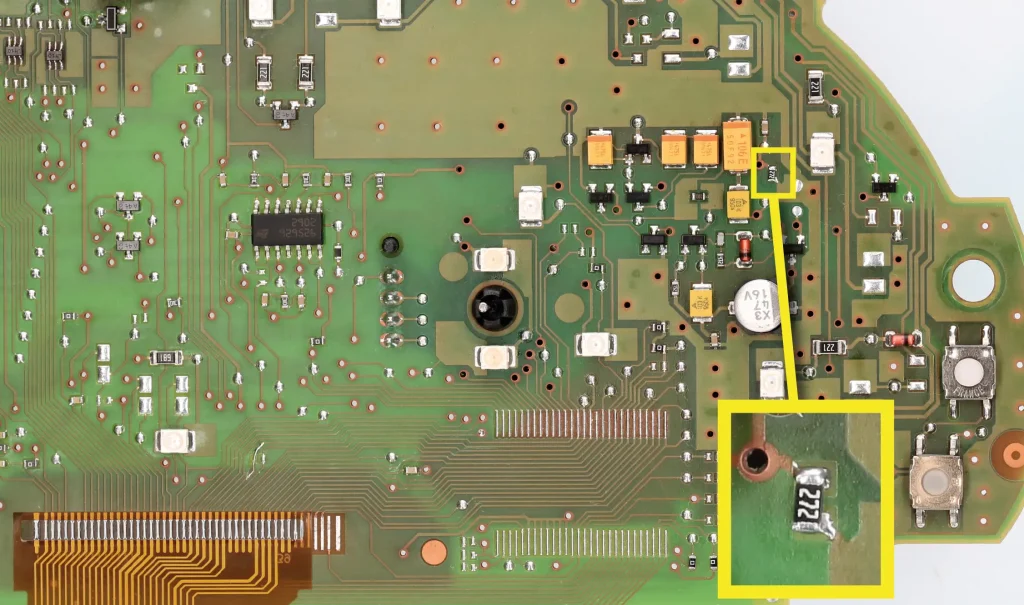

After replacing the LCD, identify the resistor shown in picture 1, de-solder it and replace it with one by 2.7K ohm (2 resistors are supplied with the Minitools kit, 1 of which is extra).
Test

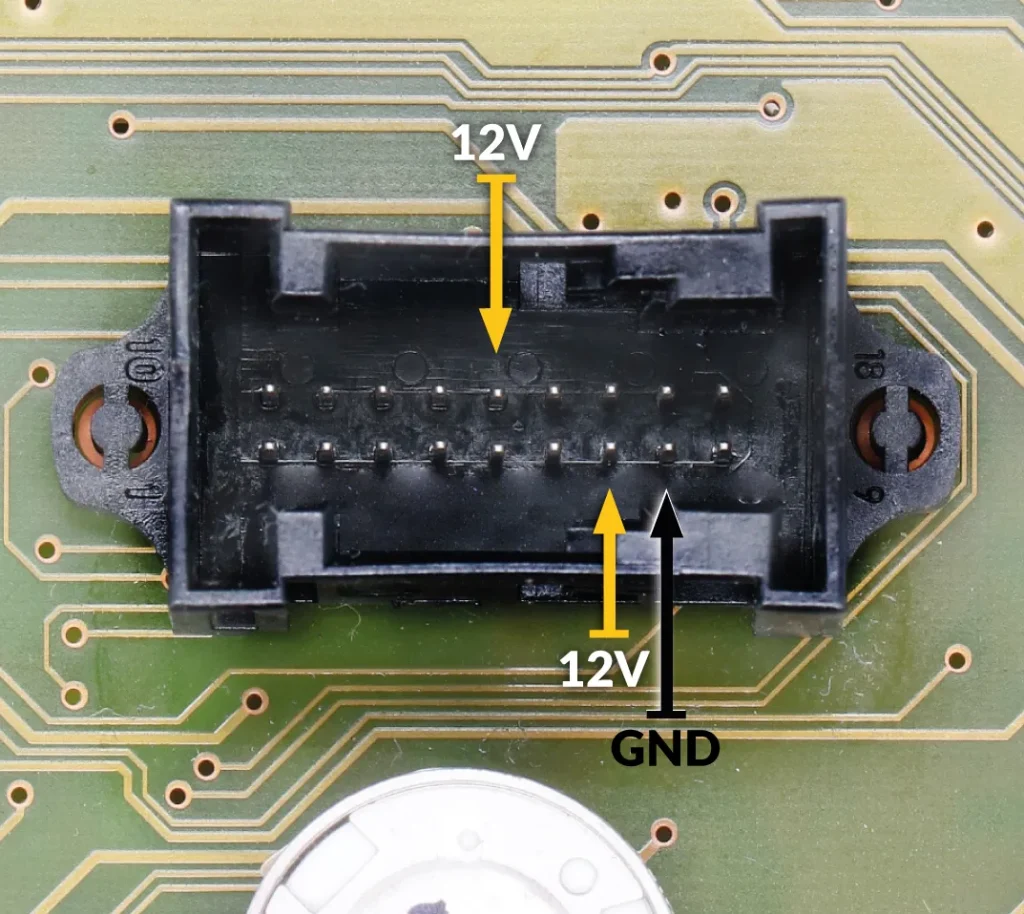

POWER SUPPLY:
• Pin 7, Pin 14: +12V;
• Pin 8: GND.
